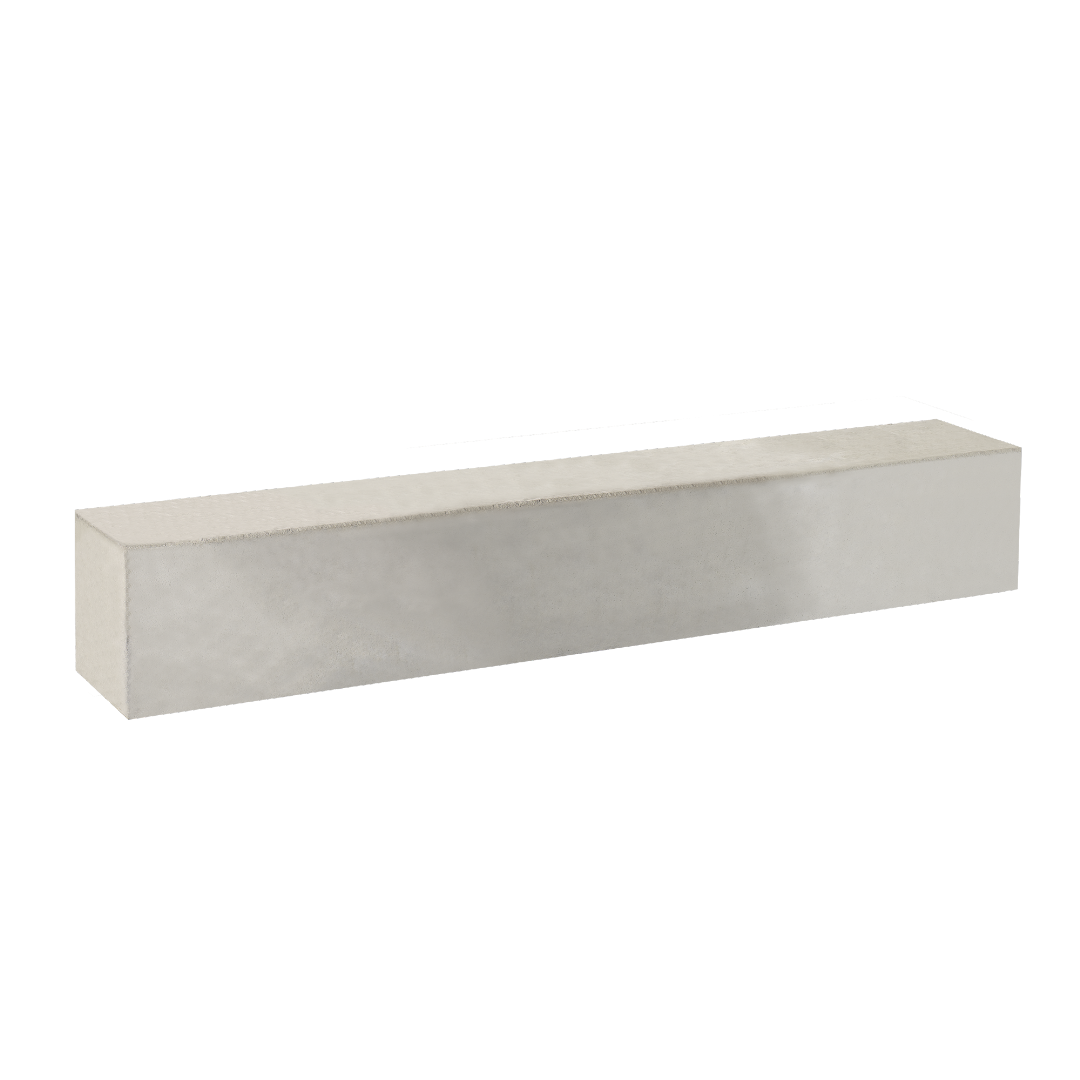

Hi-Spec Lintels
Our Hi-Spec lintel range is one of the most specified products in the UK market due to the comprehensive range of section sizes and lengths which are available.
More Information
Cost-effective, high performance lintels for use in plastered and rendering situations.
Naylor Hi-Spec Lintels are prestressed to ensure optimum performance and come with 30 minutes fire rating as standard. They are cost effective, high- performance and typically used in plastered and rendered situations. Due to the use of additives and concrete strength, these units are suitable for use below ground.
Hi-Spec lintels can be fixed into, on site provided the prestressing tendons contained within the units remain undamaged. We would suggest contacting our technical team to discuss specific requirements.
Pre-stressed concrete lintels ensure optimum performance and have a high span to depth ratio which results in lighter units. Each lintel is marked at the ‘top’ to ensure correct orientation during installation.
Naylor Hi-Spec lintels are available in 14 different section sizes and in widths of 100mm, 140mm, 190mm and 215mm with lengths ranging from 450mm to 4800mm dependent upon section size. They can also be cut to length without adversely affecting product performance. Typically supplied with textured finish, they are ideally suited to plastered or rendered applications
Typical Applications & Uses
Naylor Hi-Spec lintels are suitable for use in the construction of a wide range of applications including:
- Residential apartment blocks
- Schools
- Hospitals
- Care homes
- Shopping centres
- Industrial and commercial
- Leisure and sports stadia
- Airports
Product Certifications
- BS EN 1992-1-2: 2004 – Classification of fires
- BS EN 845: Part 2: 2013 + A1: 2016 – Specification for ancillary components
- BS EN 206: 2013 + A2: 2021 – Concrete specification performance production and conformity
- BS 8500 -1: 2015 – Complimentary BS to BS EN 206
- Prestressed wire complies with BS 5896: 2012 – High tensile steel wire and strand for the prestressing of concrete
Contact Us
Want to talk to us about our products? Get in touch
Or why not give us a call on +44 (0) 1226 320810
Want to know more about this product? Sales Contacts
Or why not give us a call on +44 (0) 1226 320810
Product variations:
Scroll Left-Right to View Details
Unsure which lintels to use for your next project?
Check out our lintel selector to help you work out which lintel is right for you.
